Applications - tracked knuckle boom
- Elevated work in areas of tight or steep access, indoors and outdoors
- Painting, maintenance, lighting work
- Shopping centres & stadiums
- Signwriting
- Cleaning
- Tree lopping
- Factory, warehouse maintenance
- General overhead work
Hisens
A versatile, flat-ground boom lift elevated work platform with tracks for steep access, and outriggers for stabilising on uneven surfaces. Narrow access design, with swing and drive controls from the basket. Hire package includes two harnesses, which must be used as required by law.
- Exceptional gradeability
- Stabilisation allows operation on uneven surfaces
- Automatic machine set up
- Automatic rpm control reduces consumption and noise
Mandatory Safety Equipment
Specifications
Please note, make and model of machine supplied may be different to the specifications below. If you require exact figures, please call our office.

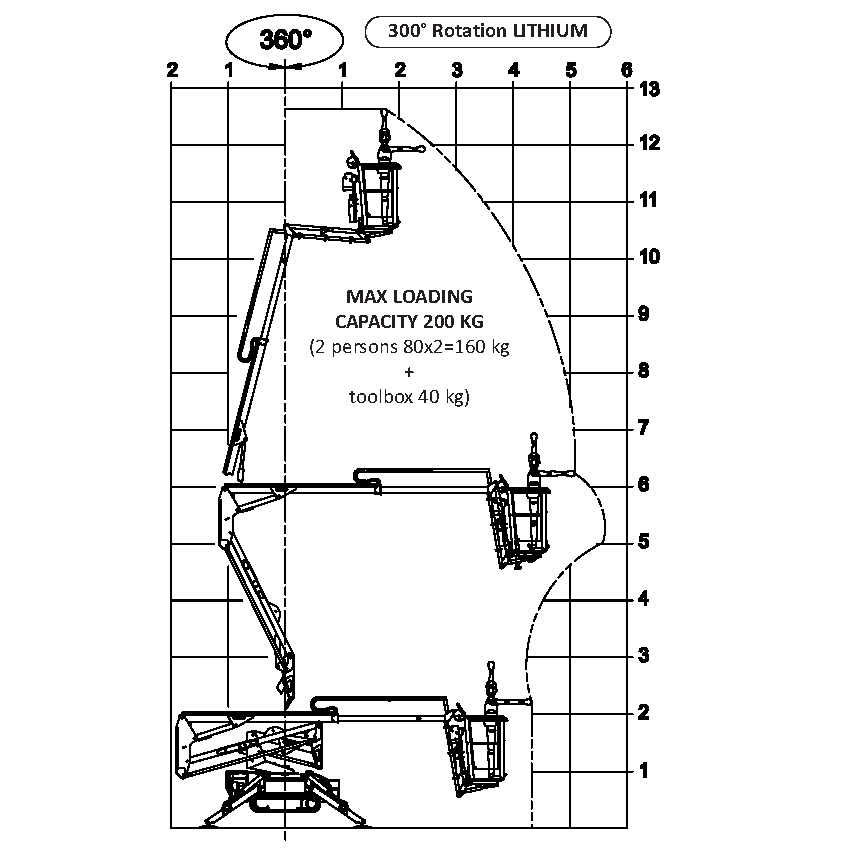

Dimensions and reach diagram pdf can be downloaded here for printing.
| Specification | Value |
| Platform height | 13m (43ft) |
| Platform Rotation | 360⁰ |
| Working height | 14m (46ft) at 120kg, or 12.7m (42ft) at 200kg |
| Basket Size | 1100 L x 690 W |
| Size (stowed) | 4.06m L x 1.1m W x 1.95m H |
| Max stabilisation area | 2.7m x 2.7m |
| Working outreach | 7.0m |
| Maximum gradability (travel mode) | 26.8% |
| Max stabilisation angle | 9.5⁰ |
| Safe working load | 200kg |
| Power | Battery only, Petrol only, and bi-energy (engine and battery) |
| Machine weight | 1800kg |
Safety Information
Please read our General Safety Information Guide before operating this equipment.
To understand how to operate the equipment, you can refer to the manufacturer's Operating Manual.
Please read the Hazard and Risk Assessment before operating the equipment.
