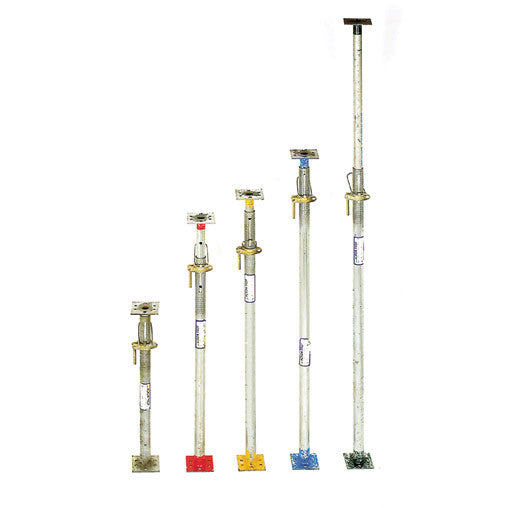

Acrow Props - steel (1.0m to 5.1m)

Applications

• Supporting formwork, walls, ceilings and overhead structures during construction

Specifications

Please note, make and model of machine supplied may be different to the specifications below. If you require exact figures, please call our office.

• Type 00: Length (min/max): 0.6 m / 1.1 m, Weight: 13 kg, Max weight (closed/extended): 4200 kg / 2350 kg
• Type 0: Length (min/max): 1.1 m / 1.8 m, Weight: 16 kg, Max weight (closed/extended): 4282 kg / 2345 kg
• Type 1: Length (min/max): 1.6 m / 2.8 m, Weight: 16 kg, Max weight (closed/extended): 3467 kg / 1325 kg
• Type 2: Length (min/max): 2.0 m / 3.4 m, Weight: 19 kg, Max weight (closed/extended): 4078 kg / 1020 kg
• Type 3: Length (min/max): 2.6 m / 4.0 m, Weight: 22 kg, Max weight (closed/extended): 3400 kg / 700 kg
• Type 4: Length (min/max): 3.3 m / 5.0 m, Weight: 30 kg, Max weight (closed/extended): 1835 kg / 700 kg

Safety Information

Please read our General Safety Information Guide before operating this equipment.
