Applications - vertical man lift

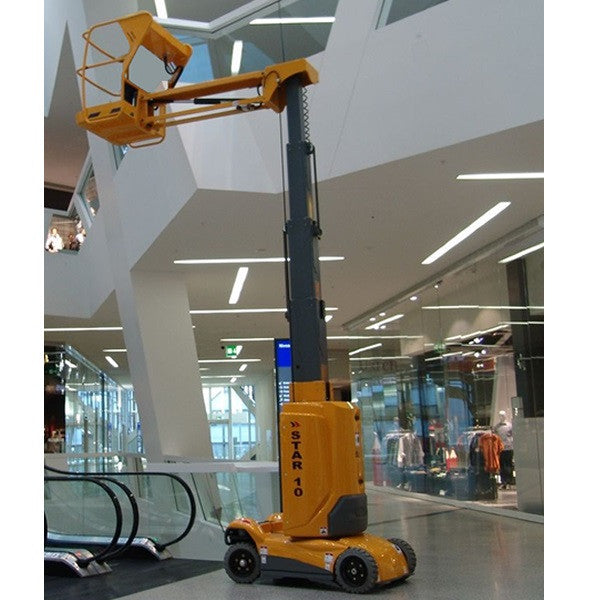

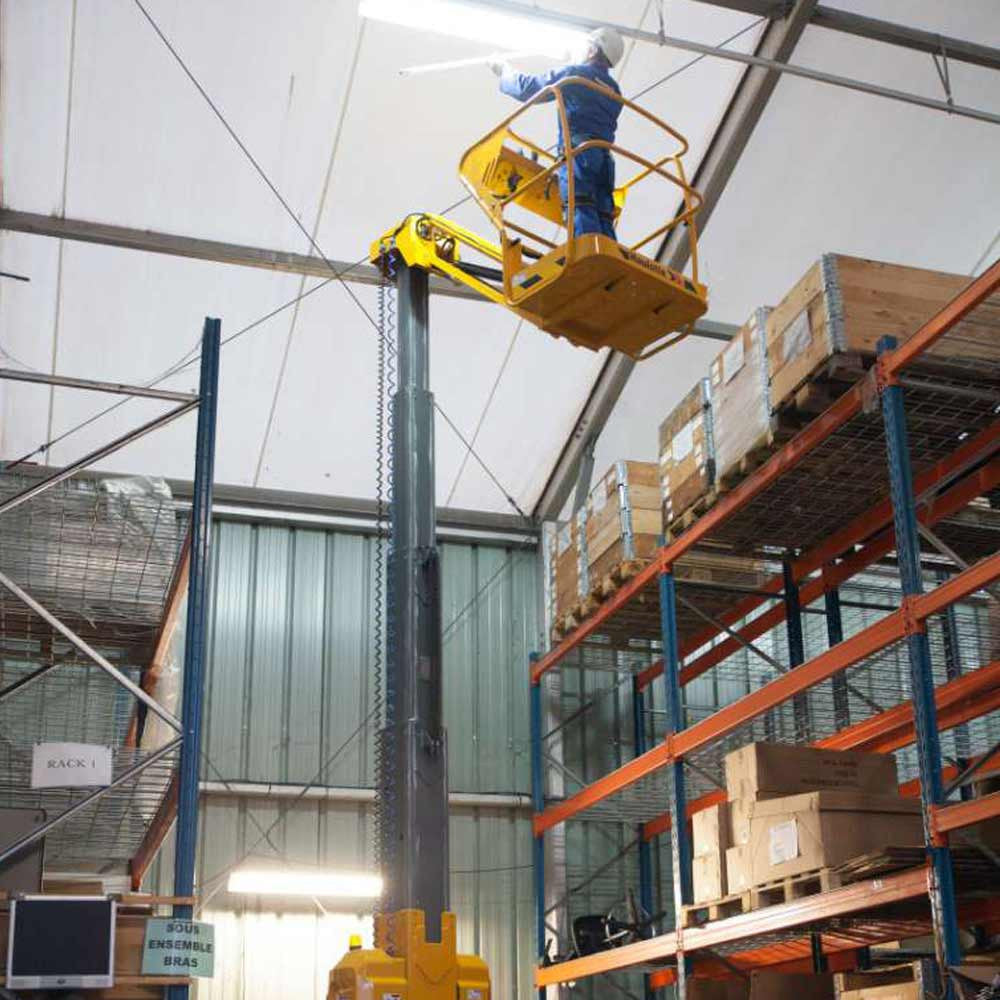

- Working shopping centres, factories, warehouses with narrow isles
- Painting, maintenance work, cleaning
- Film and TV
- Stock picking and stocktaking
- General overhead work
- Sign installation
- Construction activities

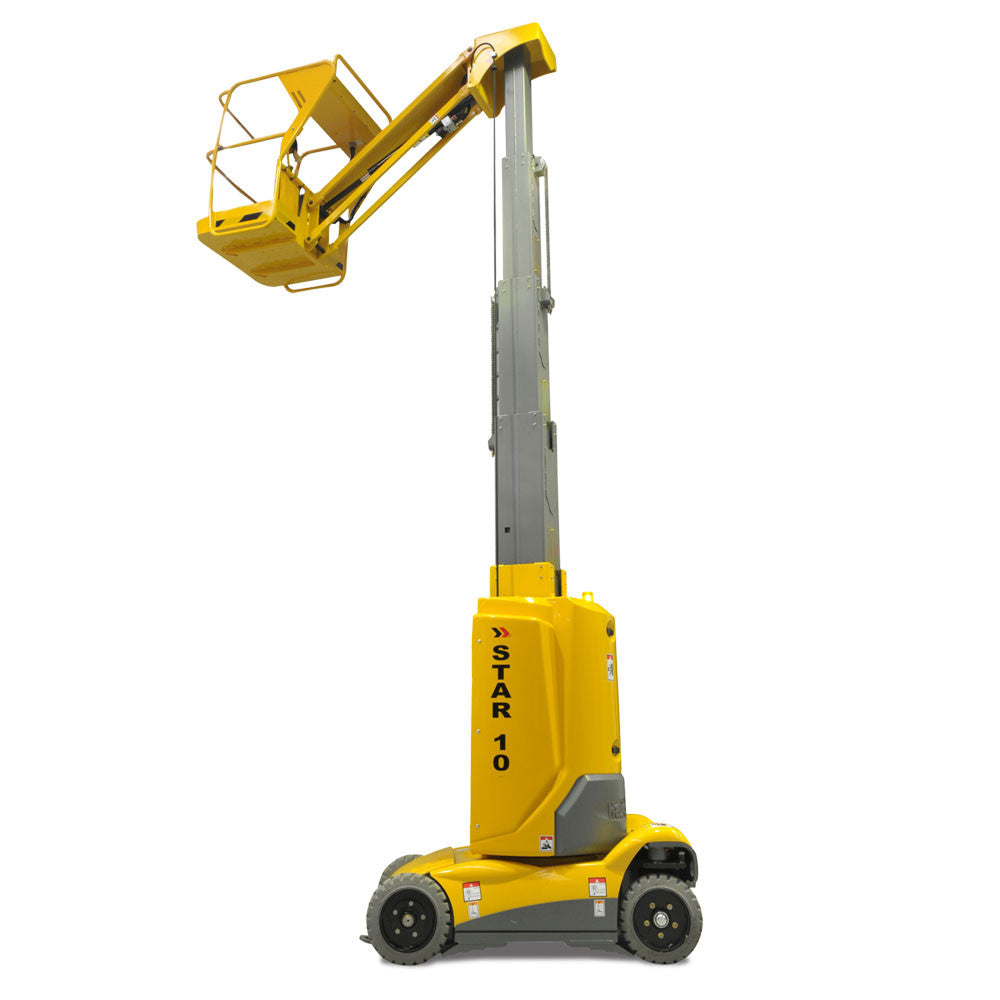

Product Information - Haulotte Star 10
An electric, self-propelled, telescopic elevated work platform. Can be transported on our specialised trailers.
- Battery charge indicator
- On-board diagnostic tool Haulotte Activ’Screen
- Centralised battery filling
- Forklift tine pockets
- Towing hooks and lifting eyes
- Passive potholes
- 2 rear steering wheels
- 2 front driving wheels
- Non-marking tyres
- Brake release
- Horn
- Emergency stop buttons at cage and ground level
- Load controller in the platform
- Emergency hand pump
- 2 control stations - cage and ground level
- 2 rings in the platform for safety harnesses
- Travel alarm
- Mandatory Safety Equipment
Please note, make and model of machine supplied may be different to the specifications below. If you require exact figures, please call our office.
Download and print a pdf copy of the Haulotte Star 10 specifications.
| Specification | Value |
| Power | Battery electric |
| Weight | 2677kg |
| Lifting capacity | 200kg |
| Platform size | 0.8m x 1m |
| Platform height | 8.0m |

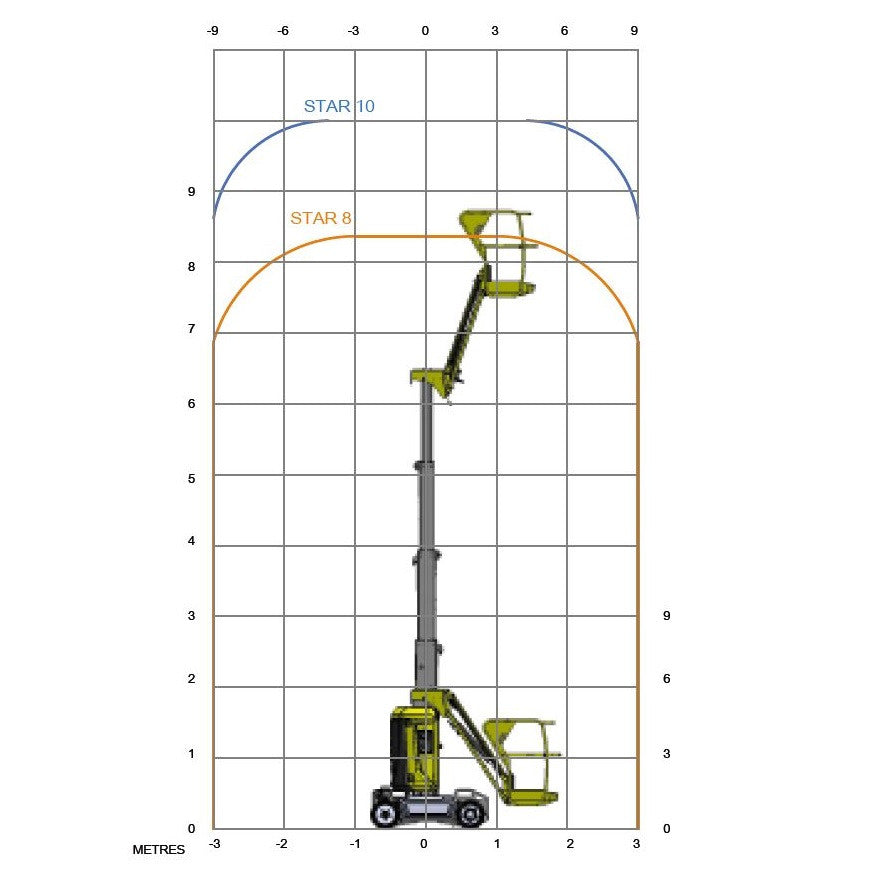

| Horizontal Outreach | 3m |
| Dimensions stowed | 2.7 x 1.0 x 2m H |
| Outrigger footprint | 1.93 x 1.73 m |
| Turning radius - outside | 1.88m |
Please read our General Safety Information Guide before operating this equipment.
Please read our full Hire Contract Conditions here before hiring from Mega Hire.
In addition, please note the following specific conditions:
- Certification is not required to operate this machine, however you must feel competent to do so
- Employers hiring for their employees have a 'Duty of Care' responsibility under the Act
- Mega Hire will provide instruction on operating this equipment, however it is the customer's responsibility to operate this machine safely
- Operators Manual to be read prior to operating this machine (supplied with the equipment)
- This equipment can only be used on flat solid ground according to manufacturer's guidelines
- The Logbook is required to be completed by the customer when operating this machine
- All persons using this unit must wear an approved safety harness
CAUTION: Do not approach within 3 metres of overhead low voltage power lines or other electrical hazards
NOTE: This unit has outriggers for use on uneven surfaces
