Mobile Straight boom - 55m (180ft) diesel Genie

Loading... $ Price available on application

  • Applications

    • Highest elevated work platform available
    • Wind turbine maintenance
    • Painting, maintenance, lighting work
    • Shopping centres & stadiums
    • Factory, warehouse maintenance
    • General overhead work

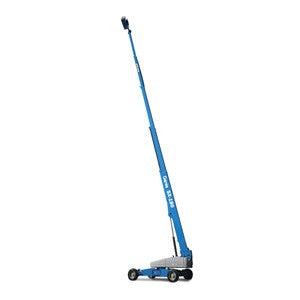

    Product Information - Genie X180

    A versatile 4x4, boom lift elevated work platform that is easily manoeuvrable and has exceptional outreach. Hire package includes two harnesses, which must be used as required by law.

    • 2.44 m (8 ft) steel platform
    • 4WD
    • 4WSteer
    • Extendable axles
    • Rough terrain foam-filled tyres
    • Self-leveling platform
    • Hydraulic platform rotation
    • Fully proportional Hall effect joystick controls
    • Drive enable
    • Tilt alarm
    • Descent alarm
    • Motion alarm
    • 360° continuous turntable rotation
    • Positive traction drive
    • Two speed wheel motors
    • Configurable controls to limit maximum height to 24.38 m (80 ft) or 30.48 m (100 ft)
    • Engine status display
    • Thumb rocker steer
    • Dual flashing beacons

      Mandatory Safety Equipment

      Safety glasses Hard Hat Safety harness

      Download and print a pdf copy of the Genie X180 specifications.

      Specification Value
      Platform height 55m (180ft)
      Below ground reach 0.61m
      Turntable rotation 360⁰ continuous
      Turntable tailswing 1.14 m (axles extended)
      Working height 57m (186ft)
      Basket Size 910 L x 2440 W
      Size (stowed) 16.2m L x 2.5m W x 3.1m H
      Working outreach 24.4m
      Safe working load 340kg
      Power Diesel
      Machine weight 25,000kg

      Please read our General Safety Information Guide before operating this equipment.

      Please read our full Hire Contract Conditions here before hiring from Mega Hire.



      In addition, please note the following specific conditions:

      - a High Risk Work (HRW) license is required to operate this machine

      - Employers hiring for their employees have a 'Duty of Care' responsibility under the Act

      - Mega Hire will provide instruction on operating this equipment, however it is the customer's responsibility to operate this machine safely

      - Operators Manual to be read prior to operating this machine (supplied with the equipment)

      - This equipment can only be used on flat solid ground according to manufacturer's guidelines

      - The Logbook is required to be completed by the customer when operating this machine

      - All persons using this unit must wear an approved safety harness

      CAUTION: Do not approach within 3 metres of overhead low voltage power lines or other electrical hazards

      NOTE: This unit has outriggers for use on uneven surfaces

      Multiple orders can usually be combined into one delivery (depending on size and number of equipment).

      Mega Hire deliver to the greater Brisbane area (click on the map below for an ineractive google map). We typically deliver in the morning of each day (excluding Sundays). We will contact you to inform you of a time window for delivery.

      Delivery and pickup sites must have a safe area to unload, demonstrate the equipment and complete the paperwork.

      More information on our delivery and collection service is available here.
