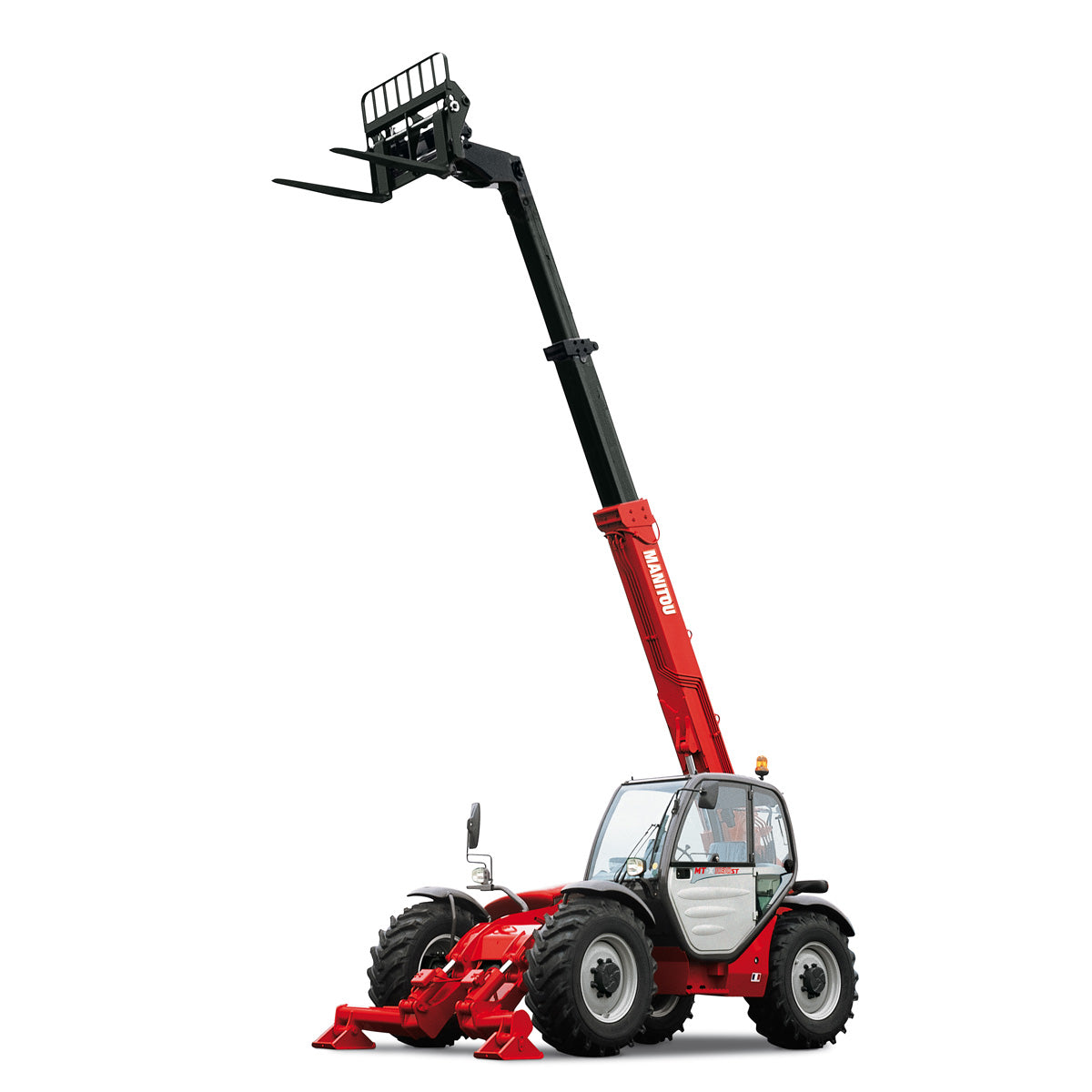

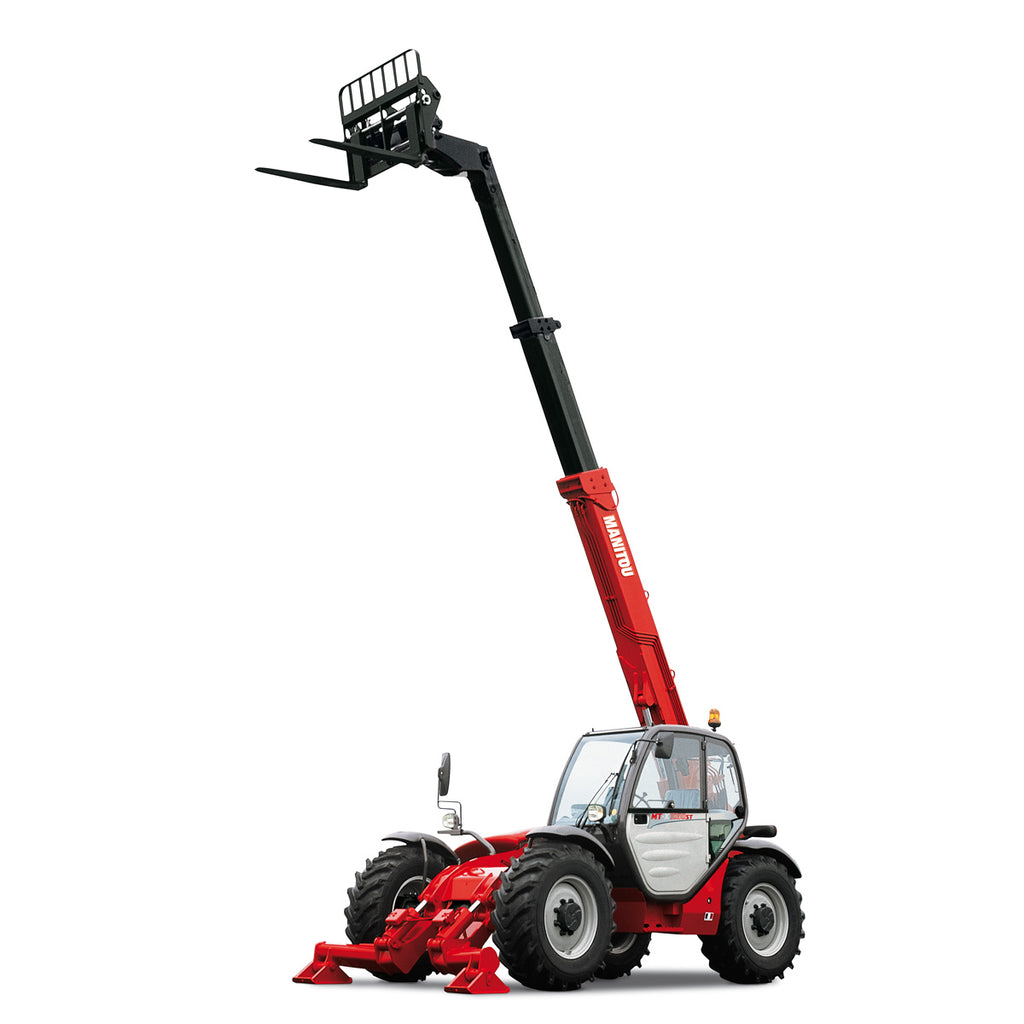

Manitou Telehandler - 3.5t at 12m diesel - Mega Hire

Manitou Telehandler - 3.5t at 12m diesel

Contact us on 1300 546 122 for long term rate!

Fuel is charged at $2.80/L
- Manitou MT1030

A versatile 4x4 telehandler provides flexible lifting capability, for moving and placing loads while on uneven ground with exceptional outreach.

  • Smooth control, Powershift 4 speed forward and 3 speed reverse, 4 wheel drive
  • Proportional lift, telescope and fork tilt
  • Proportional function stabilisers operate in line with chassis
  • LMIS system (3B6) for use with jib for freely suspended loads
  • Oscillating rear axle, assists 4 wheel drive traction
  • Front 2 wheel steer, 4 wheel steer, and crab steer
  • Hydraulic frame sway (levelling)
  • Australian specification air conditioning for operator comfort
  • Large construction lug pattern air filled tyres
  • Plug in JLG analyser in the cabin and dash panel display analyser to indicate system functions for servicing and adjustment

Applications

  • Lifting loads for construction and maintenance
  • Lifting loads in the agricultural sector on uneven ground and awkward locations
  • Ideal for situations where forklifts are not suitable (i.e. uneven or soft ground)

Specifications

Please note, make and model of machine supplied may be different to the specifications below. If you require exact figures, please call our office.

Download and print a pdf copy of the Manitou MT1030 specifications.

  • Max fork height: 13m (33ft)
  • Max forward reach: 9.2m
  • Max lift capacity: 3500kg
  • Lift capacity (full height): 3500kg
  • Lift capacity (full reach): 800kg
  • Machine dimensions: 5m L x 2.3m W x 2.4m H
  • Turning radius (outside wheels): 3.8m
  • Power: Diesel
  • Machine weight: 10.8t

Mandatory Safety Equipment

Safety equipment images
Safety equipment images

Please read our General Safety Information Guide before operating this equipment.
